Luxand FaceSDK – Detected Facial Features

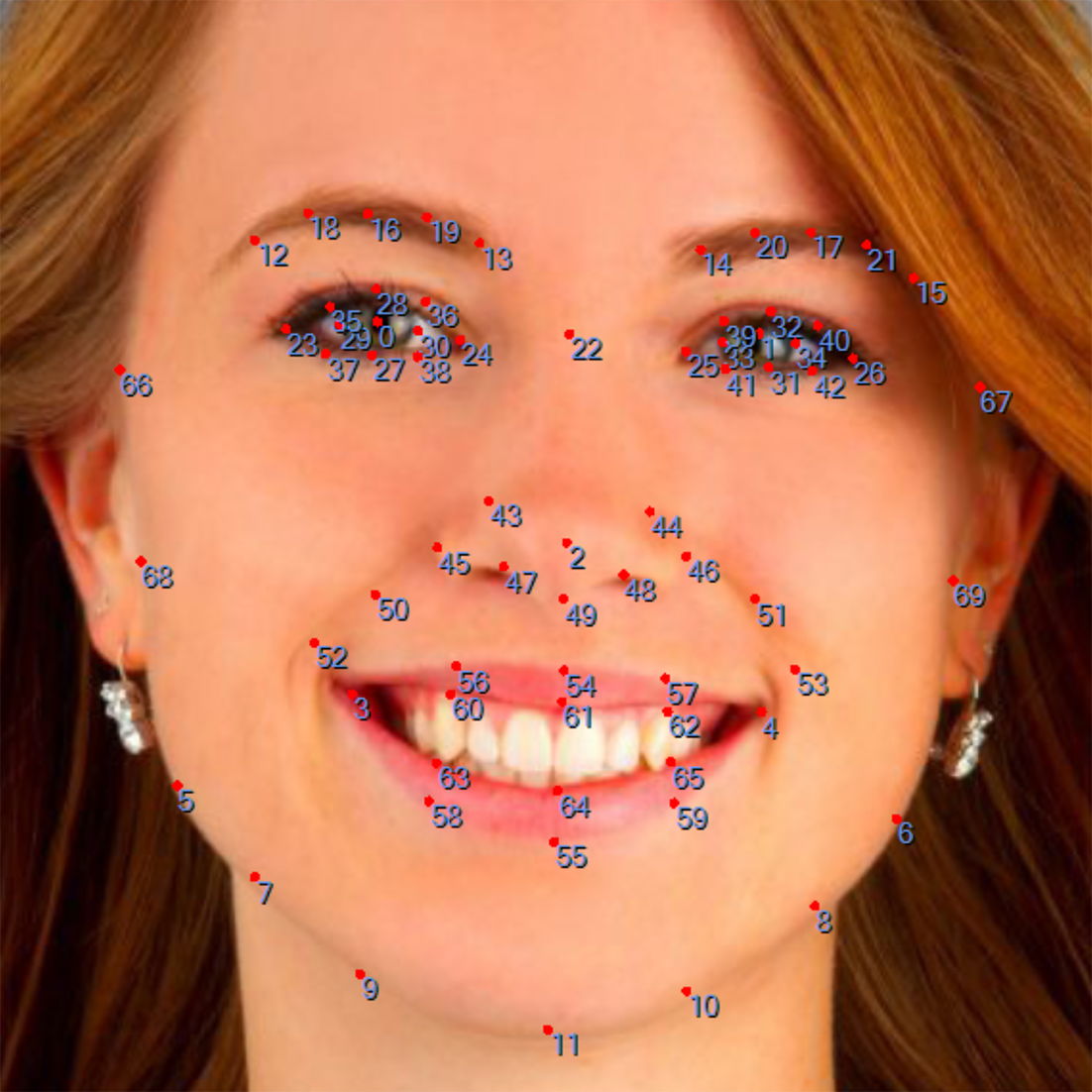

Luxand FaceSDK recognizes 70 facial feature points. These facial feature points can be accessed by their names in the FSDK_Features array.

Facial Feature Name

Value

FSDKP_LEFT_EYE

0

FSDKP_RIGHT_EYE

1

FSDKP_LEFT_EYE_INNER_CORNER

24

FSDKP_LEFT_EYE_OUTER_CORNER

23

FSDKP_LEFT_EYE_LOWER_LINE1

38

FSDKP_LEFT_EYE_LOWER_LINE2

27

FSDKP_LEFT_EYE_LOWER_LINE3

37

FSDKP_LEFT_EYE_UPPER_LINE1

35

FSDKP_LEFT_EYE_UPPER_LINE2

28

FSDKP_LEFT_EYE_UPPER_LINE3

36

FSDKP_LEFT_EYE_LEFT_IRIS_CORNER

29

FSDKP_LEFT_EYE_RIGHT_IRIS_CORNER

30

FSDKP_RIGHT_EYE_INNER_CORNER

25

FSDKP_RIGHT_EYE_OUTER_CORNER

26

FSDKP_RIGHT_EYE_LOWER_LINE1

41

FSDKP_RIGHT_EYE_LOWER_LINE2

31

FSDKP_RIGHT_EYE_LOWER_LINE3

42

FSDKP_RIGHT_EYE_UPPER_LINE1

40

FSDKP_RIGHT_EYE_UPPER_LINE2

32

FSDKP_RIGHT_EYE_UPPER_LINE3

39

FSDKP_RIGHT_EYE_LEFT_IRIS_CORNER

33

FSDKP_RIGHT_EYE_RIGHT_IRIS_CORNER

34

FSDKP_LEFT_EYEBROW_INNER_CORNER

13

FSDKP_LEFT_EYEBROW_MIDDLE

16

FSDKP_LEFT_EYEBROW_MIDDLE_LEFT

18

FSDKP_LEFT_EYEBROW_MIDDLE_RIGHT

19

FSDKP_LEFT_EYEBROW_OUTER_CORNER

12

FSDKP_RIGHT_EYEBROW_INNER_CORNER

14

FSDKP_RIGHT_EYEBROW_MIDDLE

17

FSDKP_ RIGHT_EYEBROW_MIDDLE_LEFT

20

FSDKP_ RIGHT_EYEBROW_MIDDLE_RIGHT

21

FSDKP_RIGHT_EYEBROW_OUTER_CORNER

15

FSDKP_NOSE_TIP

2

FSDKP_NOSE_BOTTOM

49

FSDKP_NOSE_BRIDGE

22

FSDKP_NOSE_LEFT_WING

43

FSDKP_NOSE_LEFT_WING_OUTER

45

FSDKP_NOSE_LEFT_WING_LOWER

47

FSDKP_NOSE_RIGHT_WING

44

FSDKP_NOSE_RIGHT_WING_OUTER

46

FSDKP_NOSE_RIGHT_WING_LOWER

48

FSDKP_MOUTH_RIGHT_CORNER

3

FSDKP_MOUTH_LEFT_CORNER

4

FSDKP_MOUTH_TOP

54

FSDKP_MOUTH_TOP_INNER

61

FSDKP_MOUTH_BOTTOM

55

FSDKP_MOUTH_BOTTOM_INNER

64

FSDKP_MOUTH_LEFT_TOP

56

FSDKP_MOUTH_LEFT_TOP_INNER

60

FSDKP_MOUTH_RIGHT_TOP

57

FSDKP_MOUTH_RIGHT_TOP_INNER

62

FSDKP_MOUTH_LEFT_BOTTOM

58

FSDKP_MOUTH_LEFT_BOTTOM_INNER

63

FSDKP_MOUTH_RIGHT_BOTTOM

59

FSDKP_MOUTH_RIGHT_BOTTOM_INNER

65

FSDKP_NASOLABIAL_FOLD_LEFT_UPPER

50

FSDKP_NASOLABIAL_FOLD_LEFT_LOWER

52

FSDKP_NASOLABIAL_FOLD_RIGHT_UPPER

51

FSDKP_NASOLABIAL_FOLD_RIGHT_LOWER

53

FSDKP_CHIN_BOTTOM

11

FSDKP_CHIN_LEFT

9

FSDKP_CHIN_RIGHT

10

FSDKP_FACE_CONTOUR1

7

FSDKP_FACE_CONTOUR2

5

FSDKP_FACE_CONTOUR12

6

FSDKP_FACE_CONTOUR13

8

FSDKP_FACE_CONTOUR14

66

FSDKP_FACE_CONTOUR15

67

FSDKP_FACE_CONTOUR16

68

FSDKP_FACE_CONTOUR17

69
